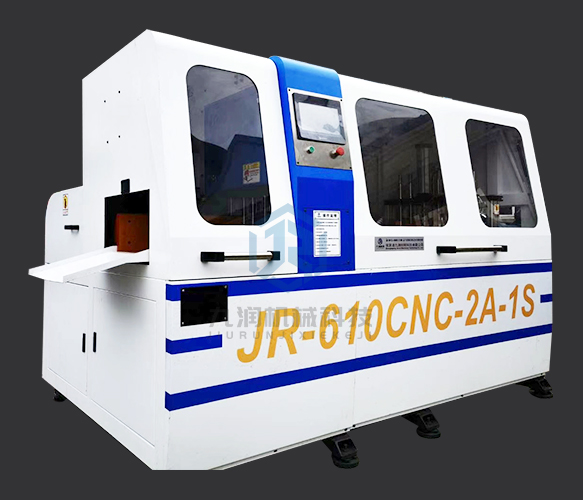

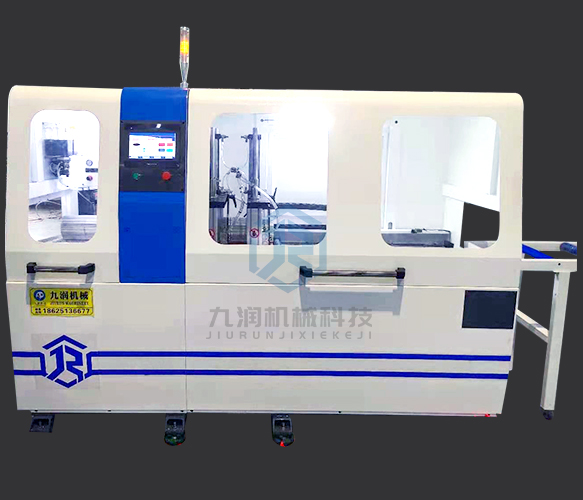

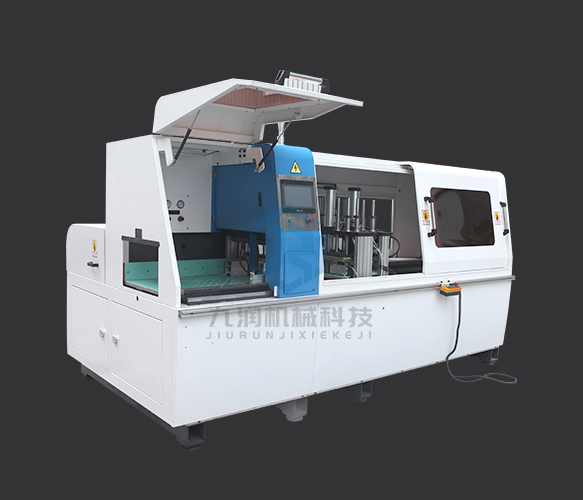

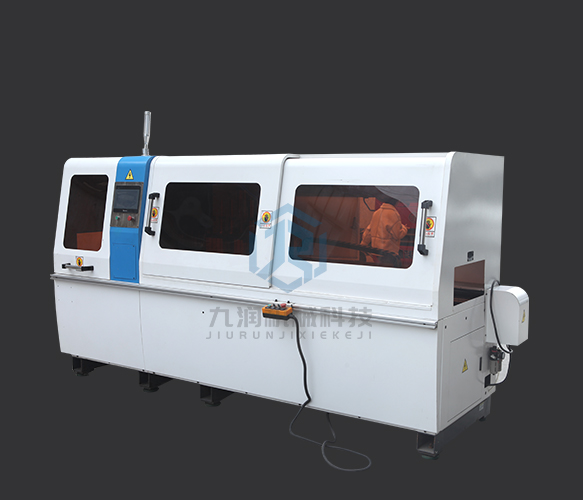

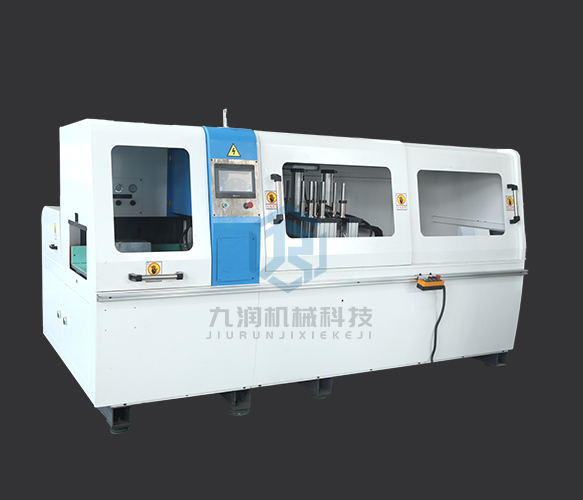

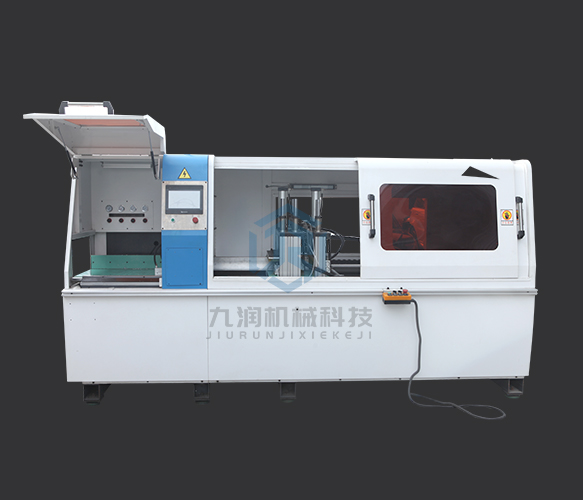

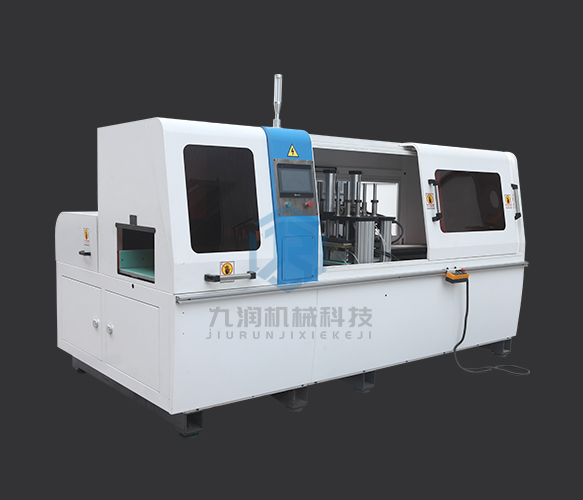

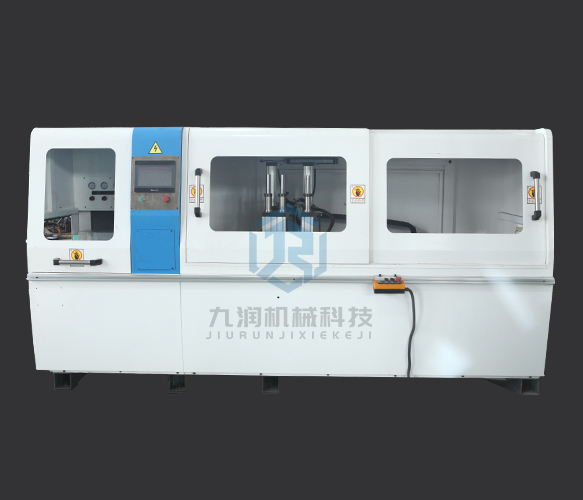

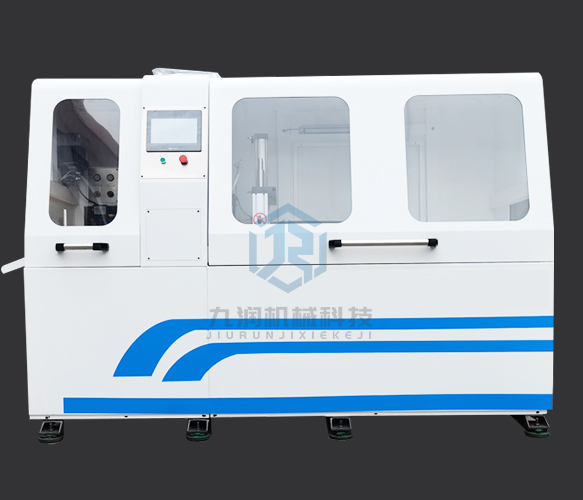

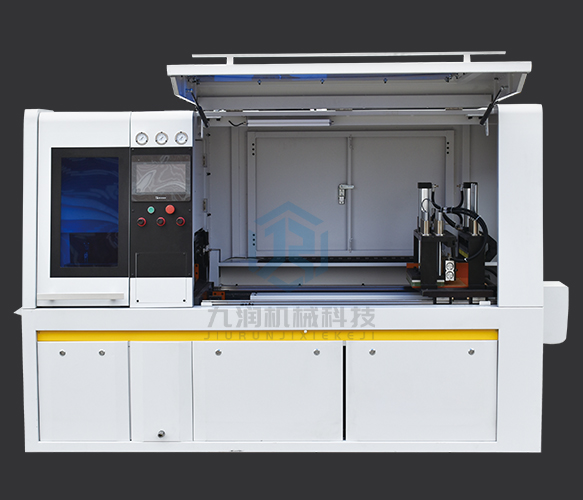

JR-455CNC-3A-1S 全自動拉尾料鋁切機
序號項目單位參數1夾緊方式氣缸垂直夾緊+側頂水平夾緊2進刀方式伺服/液壓(進刀方式可選配）3主電機功率Kw5.54進刀液壓電機KW0.75(選配）5進刀伺服電機KW1（選配）6適用電壓380V 50HZ7主軸轉速轉/分29008適用鋸片外徑φ355-φ455mm 內孔φ25.4mm9最大鋸切高度mm21010最大鋸切寬度mm45011單次送料最大行程m
在線詢價
產品詳情
機型Model | JR-455CNC-2A-1S | JR-505CNC-2A-1S | JR-610CNC-2A-1S | JR-750CNC-2A-1S |
| 主電機功率Cutting motor power | 5.5KW | 5.5KW | 7.5KW | 7.5KW |
| 主軸轉速Spindle speed | 0-3000rpm | 0-2800rpm | 0-2200rpm | 0-1800rpm |
| 鋸片規格Saw blade specifications | φ305-φ455mm | φ355-φ505mm | φ355-φ610mm | φ455-φ750mm |
| 切割角度Cutting angle | 90° | 90° | 90° | 90° |
| 最大鋸切高度Maximum sawing height | 125mm | 155mm | 210mm | 270mm |
| 最大鋸切寬度Maximum sawing width | 360mm | 420mm | 470mm | 550mm |
| 電壓Voltage | 國內380V 50HZ 國外依客戶所需定制Domestic 380V 50HZ, customized according to customer needs overseas | |||
| 切割精度Cutting accuracy | ±0.1mm | ±0.1mm | ±0.1mm | ±0.1mm |
| 所需空壓Required air pressure | 5-8kg/cm2 | 5-8kg/cm2 | 5-8kg/cm2 | 5-8kg/cm2 |
| 送料伺服電機功率Feeding servo motor power | 0.85KW | 1KW | 1.3KW | 1.8KW |
| 進刀伺服電機功率Feed servo motor power | 1.3KW | 1.3KW | 1.3KW | 1.8KW |
| 出、入料架長度Length of infeed and outfeed racks | 依客戶所需定制Customized accordingtocustomer needs | |||
| 吸塵器功率Vacuum cleaner power | 3KW | 4KW | 4KW | 4KW |
| 單次送料最大行程Maximum single feeding stroke | 1000mm | 1000mm | 1000mm | 1200mm |
| 機器尺寸Machine size | 2800*1600*1900mm | 3000*1800*2100mm | 3200*2000*2300mm | 3400*2200*2500mm |
| 重量Weight | 1.45T | 1.7T | 2T | 2.3T |
| 適用材料Applicable materials | 適合鋸切新能源汽車零部件、散熱片、鋁材、銅材、pv、塑鋼材料、電木板、亞克力塑膠、鐵氟龍、蜂巢板、木板等非鐵金屬材料Suitable for sawing new energy vehicle parts, heat sinks, aluminum, copper, PVc, plastic steel, bakelite, acrvlic plastic, PTFEhoneycomb board, wood board and other non-ferrous metal materials | |||
